TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
SPEED
[m/s]
PRESSURE
[MPA]
max.
DIMENSIONS
(mm)
TECH.
INFO
Cover seal

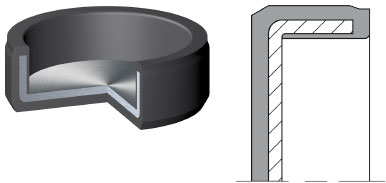

CS-10
smooth rubber OD
NBR
-30
100
-
0.05
FKM
-20
200
-
0.05
<= 600
Cover seal

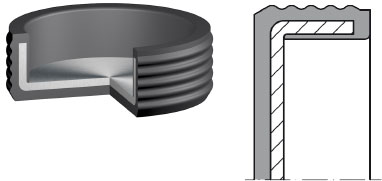

CS-11
ribbed rubber OD
NBR
-30
100
-
0.05
FKM
-20
200
-
0.05
<= 600
Cover seal

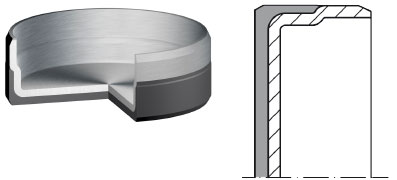

CS-12
metal + smooth rubber OD,
ribbed rubber OD possible
NBR
-30
100
-
0.05
FKM
-20
200
-
0.05
<= 600

On request available in other materials
